Solid Wall / Floor Slab /
Sandwich Panel Advanced Version

Precast

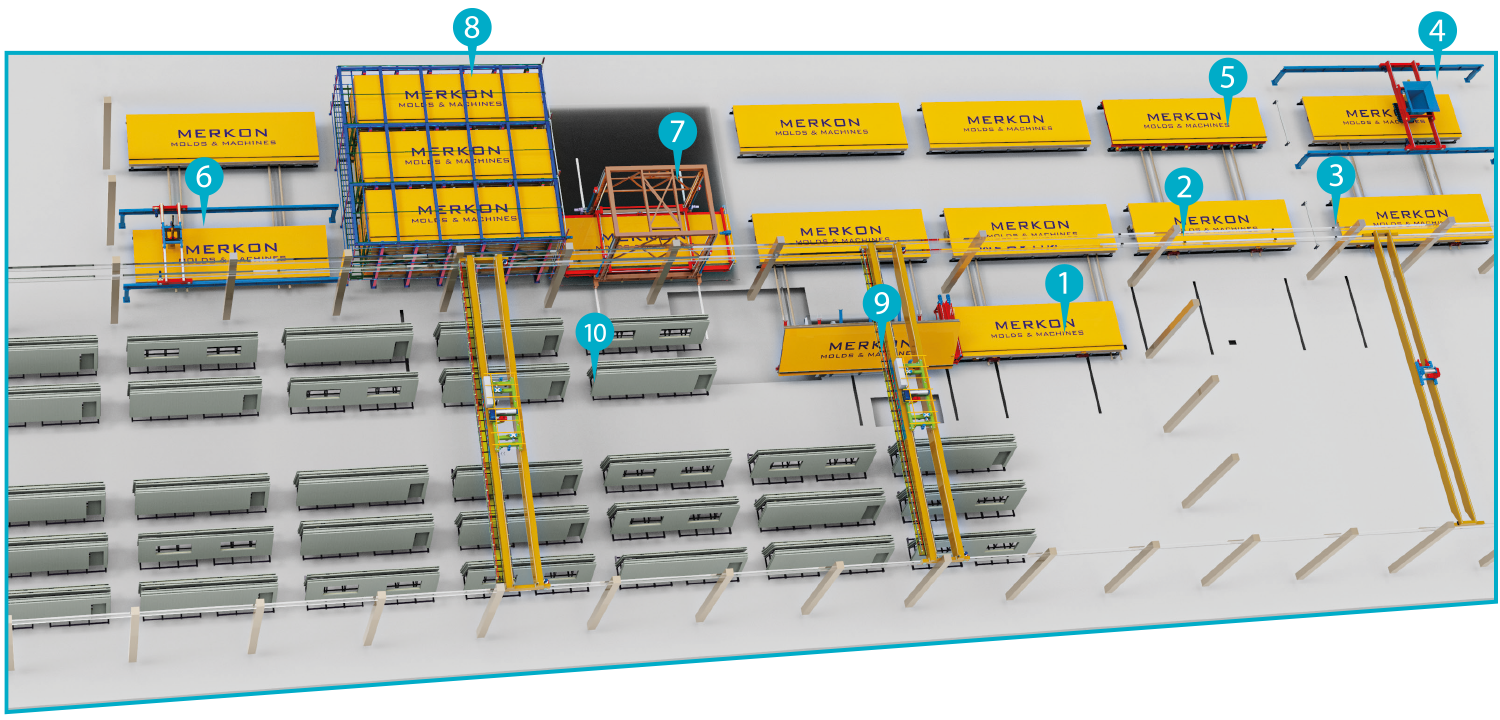

Cycle time is lowered by dividing tasks to more stations. Facing process is automized to match the cycle time. An elevator carries casting beds to individually separated curing chambers, where fully equipped with heat and humidity sensors to maintain optimal curing atmosphere. After correct curing duration, same elevator takes the beds out to make them continue along the line. Where next, they will be tilted up and products carried out to stock area by help of a crane.

PRODUCT DIMENSIONSMax Lenght (m)Max Width (m)Max Thickness (cm)m² on Pallet
SOLID WALL / SOLID SLAB931527
SANDWICH PANEL9,53,52533,25
PRODUCTION CAPACITYPALLETS PER HOURPER 20 HOUR DAYDAILY YIELD m²
(80% efficiency)
YEARLY YIELD (m²)
(300 days)
SOLID WALL / SOLID SLAB240864 259200
SANDWICH PANEL120532159600
Auto Rebar SOLID WALL / SOLID SLAB3601296388800
Auto Rebar SANDWICH PANEL1,530798239400
